Brand
|
CTA, NSC, JFE, Tenaris, Non-brand
|
|
Country Origin
|
Indonesia, Jepang, Singapura, Amerika Serikat, China
|
|
Pipe Size
|
Tubing: 2-3/8″ – 7″
Casing: 4-1/2″ – 26″ Conductor Casing: 16″ – 26″ |
|
Produk
|
Tubing, Casing,Drill pipe, Coupling, Drill Collars
|
|
Pipe End
|
P – plain-end, N – non-upset, with threaded and coupled
U – external-upset, with threaded and coupled I – whole joint or other special threads / S – short round thread, L – long round thread, B – buttress thread |
|
Standard & Grade
|
API 5CT – H40, J55, K55, M65, L80-1, N80-1, N80Q, C90, P110, Q125
API 5DP – E75, X95, G105, S135 |
Pipa Casing dan Pipa Tubing untuk berbagai macam kebutuhan dalam eksplorasi dan produksi minyak. Material baja karbon (untuk penggunaan yang paling umum), baja paduan, baja krom, dan baja paduan tinggi.
API 5CT Grades meliputi J55/K55, N80 tipe 1 dan N80Q, L80, C90, T95, P110, Q125, dan dengan persyaratan tambahan 13 Cr

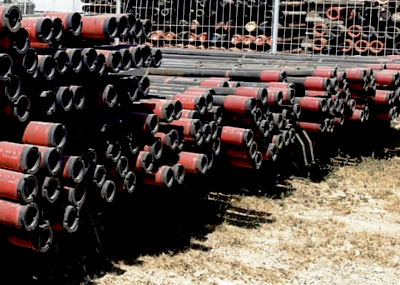

Tubing
OD: 48.26mm-114.3mm
WT: 3.18 mm – 16 mm
LENGTH: R1, R2, R3
Pipe Standard: API 5CT PSL1/PSL2 J55, K55, N80-1, N80-Q, API 5CT PSL1/PSL2 L80-1, L80-9Cr, L80-13Cr, C90, C95, P110, Q125

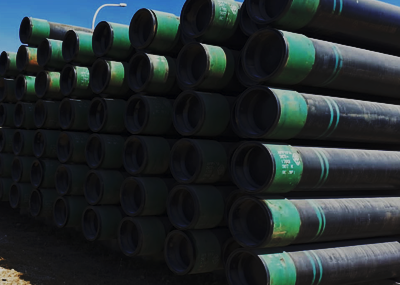

Casing
OD: 114.3 mm – 508 mm
LENGTH: R1, R2, R3
Pipe Standard: API 5CT PSL1/PSL2 J55, K55, N80-1, N80-Q, API 5CT PSL1/PSL2 L80-1, L80-9Cr, L80-13Cr, C90, C95, P110, Q125

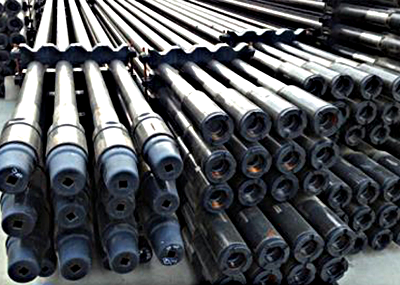

Drill Pipe
OD: 2-3/8″ to 7-5/8″
WT: 6.45 mm – 12.7 mm
LENGTH: R1, R2, R3
Pipe Standard: API 5DP E75, X95, G105, S135

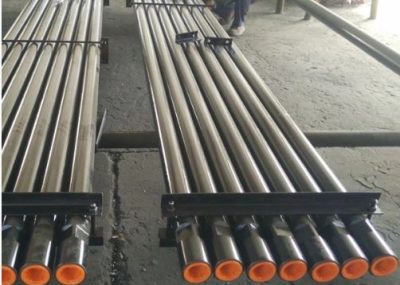

Drill Collars
OD: 3 1/8″-11″
LENGTH：30Ft / 31Ft / 43Ft / R1~R3
Connection type: NC , REG , FH, IF
Thread: NC26, NC31, NC38, NC40, NC46, NC50, 5.1/2FH
Material: Stainless Steel/Alloy steel/ 4145H/ Carbon steel
Standard: API 5DP/API Spec 7-1

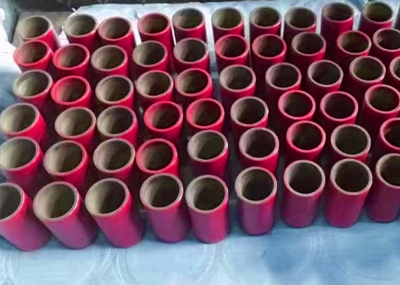

Coupling
OD : 1.8/9 – 4-1/2″, 4-1/2″ – 13-3/8″
Pipe Standard: API 5CT and 5B PSL1/PSL2 J55, K55, N80-1,N80-Q, API 5CT and 5B L80-1, C90, C95, T95, P110, Q125
